# Load necessary libraries
library(malariaAtlas)
library(tidyverse)
library(sf)
library(rnaturalearth)16 The Case of Malaria
Learning Objectives
- What is Malaria
- How does it spread
- Map Malaria outbreaks
In this chapter, we explore the dynamics of Malaria transmission in more detail. We examine the results of various model’s applications that simulate the spread of the virus.
16.1 Epidemiology
Malaria is a mosquito-borne infectious disease that affects humans and other animals. It is caused by parasitic protozoans belonging to the Plasmodium type. The disease is transmitted through the bites of Anopheles mosquitoes. The symptoms of malaria typically include fever, fatigue, vomiting, and headaches. If left untreated, malaria can be fatal. Malaria is a major public health concern in many tropical and subtropical regions, particularly in Africa.
Malaria transmission dynamics are influenced by various factors, including the prevalence of infected individuals, the density of mosquito vectors, and environmental conditions. The transmission of malaria occurs when an infected mosquito bites a human host, injecting the Plasmodium parasites into the bloodstream. The parasites then multiply within the host’s red blood cells, leading to the characteristic symptoms of malaria. The parasites can be transmitted back to mosquitoes when they feed on infected individuals, completing the transmission cycle.
16.2 Mapping Malaria Outbreaks
Mapping malaria outbreaks is essential for locating high-risk areas and guiding effective public health interventions. Geographic Information Systems (GIS) enable the visualisation of malaria’s spatial distribution, revealing transmission patterns and hotspots. The analysis of malaria cases, alongside environmental factors, such as temperature, humidity, and vegetation cover, allows the identification of conditions that facilitate transmission and support the development of targeted control strategies.
In this example, we will use the malariaAtlas package to download malaria data for Nigeria and visualise the distribution of malaria cases in the country. We will plot the malaria hotspots on a map of Nigeria to identify regions with the highest incidence of the disease.
To download malaria data we can use the getPR() function, it releases the data from the Malaria Atlas Project API. The function requires the country and species of Plasmodium to be specified. In this example, we will download data for Nigeria and the Plasmodium falciparum species.
nigeria_data <- getPR(country = "Nigeria", species = "Pf")#> [1] NA NA
#> [1] 27 2Data contains cases for 23 years spanning from 1985 to 2018. We can extract the relevant information (year_start (of the survey), longitude, latitude, and number of positive cases) and convert the data to a spatial object using the st_as_sf() function from the sf package.
nigeria_data <- nigeria_data %>%
arrange(year_start) %>%
select(year_start,longitude,latitude,positive) %>%
filter(!is.na(longitude) & !is.na(year_start))
nigeria_data_sf <- nigeria_data %>%
st_as_sf(coords = c("longitude", "latitude"),
crs = 4326)
head(nigeria_data_sf)
#> Simple feature collection with 6 features and 2 fields
#> Geometry type: POINT
#> Dimension: XY
#> Bounding box: xmin: 3.05 ymin: 6.316 xmax: 12.76 ymax: 11.1578
#> Geodetic CRS: WGS 84
#> year_start positive geometry
#> 1 1985 113 POINT (3.132 6.501)
#> 2 1985 760 POINT (3.283 6.667)
#> 3 1987 7 POINT (3.05 7.167)
#> 4 1988 433 POINT (12.76 11.1578)
#> 5 1988 363 POINT (10.632 7.2333)
#> 6 1988 181 POINT (7.549 6.316)To get the administrative boundaries of Nigeria we use the {rnaturlaearth} package:
nigeria_sf <- ne_countries(country = "Nigeria", returnclass = "sf")And finally plot the malaria hotspots on a map of Nigeria to visualise the distribution of malaria cases in the country.
# Plot Malaria Hotspots with expanded spatial data range
ggplot() +
geom_sf(data = nigeria_sf,
fill = "gray90",
color = "white")+
geom_sf(data = nigeria_data_sf,
aes(size=positive, color = positive),
alpha=0.5)+
scale_color_viridis_c(option = "plasma", name = "Malaria Cases") +
guides(size = "none") +
labs(title = "Malaria Hotspots in Nigeria",
subtitle = "1985-2018",
caption = "Source: Malaria Atlas Project | @fgazzelloni") +
theme(legend.position = "right")
Spatial data on climate, population density, and mosquito habitats are instrumental in predicting high-risk areas for malaria, aiding preventive measures like bed net distribution and indoor residual spraying. In Tanzania, for example, spatial models identified villages with the highest malaria incidence, allowing the government and NGOs to prioritize these areas for intervention1. This targeted approach enhances the cost-effectiveness of malaria control programs, reducing the disease burden by directing resources to areas with the greatest need.
16.3 Example: Simulating Malaria Transmission Dynamics
In this example, we will use data for Malaria positive cases in Nigeria from the Malaria Atlas Project to evaluate the transmission dynamics using a simple mathematical model. We will use machine learning to predict future trends.
To illustrate the modelling and prediction process we will use the caret package, which provides a unified interface for training and evaluating machine learning models. We will train a Random Forest model to predict future trends in malaria transmission based on historical data.
nigeria_cases <- nigeria_data %>%
group_by(year_start) %>%
reframe(positive = sum(positive)) %>%
rename(year = year_start) %>%
drop_na() %>%
select(year, positive)
head(nigeria_cases)
#> # A tibble: 6 × 2
#> year positive
#> <int> <dbl>
#> 1 1985 873
#> 2 1987 7
#> 3 1988 1276
#> 4 1989 134
#> 5 1990 352

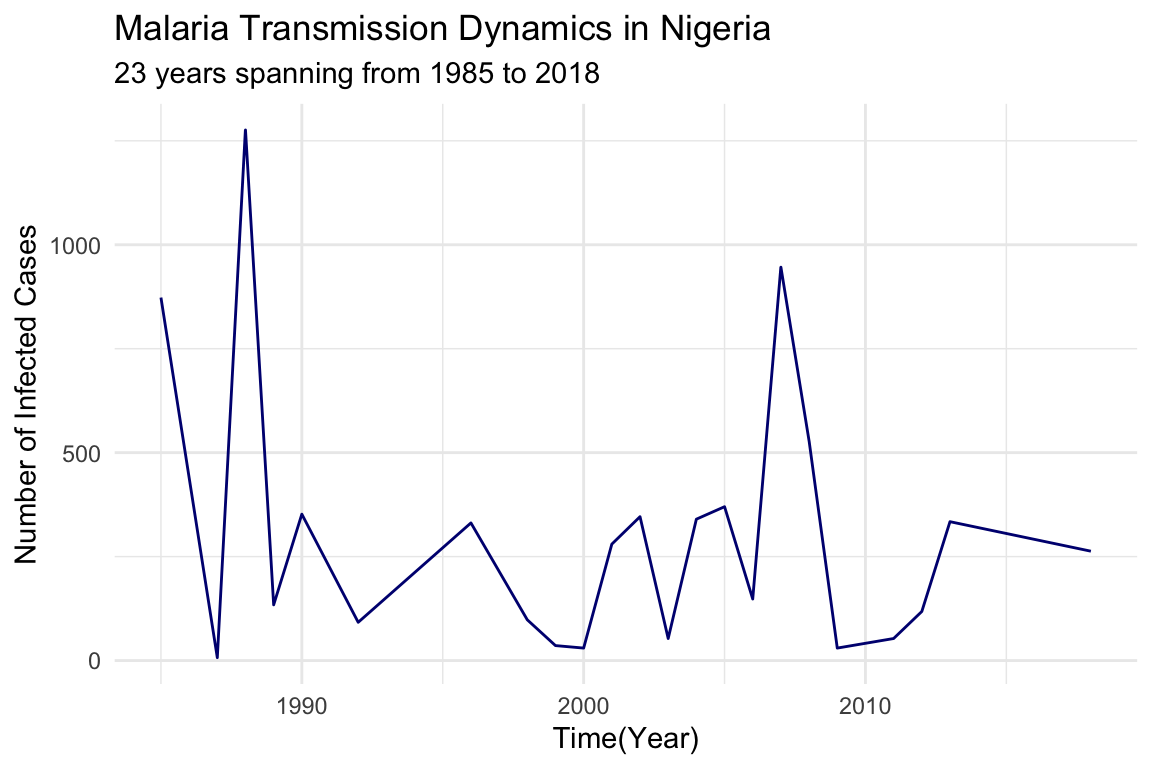

#> 6 1992 92Visualize the dynamics of malaria transmission in Nigeria using a line plot to show the number of infected cases over time.
nigeria_cases %>%
ggplot() +
geom_line(aes(x = year, y = positive), color = "navy", linetype = "solid") +
labs(title = "Malaria Transmission Dynamics in Nigeria",
subtitle = "23 years spanning from 1985 to 2018",
x = "Time(Year)",
y = "Number of Infected Cases") +
theme_minimal()
16.3.1 Modelling with caret
To train a machine learning model to predict future trends in malaria transmission, we will be using 80% of the original data to train the model and 20% to test it. Then, we will evaluate its performance using the Root Mean Squared Error (RMSE).
The caret package provides a unified interface for training and evaluating machine learning models in R (Chapter 8). It supports a wide range of algorithms and provides tools for hyperparameter tuning, cross-validation, and model evaluation.
16.3.1.1 Feature Engineering
Create lagged variables to capture the temporal dynamics of malaria transmission. For time series forecasting, it’s helpful to create variables, which represent past values of the target variable. This allows the model to learn trends from previous values.
# Create lagged features (e.g., previous year's cases)
nigeria_cases <- nigeria_cases %>%
arrange(year) %>%
mutate(lag_1 = lag(positive, 1),
lag_2 = lag(positive, 2),
lag_3 = lag(positive, 3)) %>%
drop_na()
head(nigeria_cases)
#> # A tibble: 6 × 5
#> year positive lag_1 lag_2 lag_3
#> <int> <dbl> <dbl> <dbl> <dbl>
#> 1 1989 134 1276 7 873
#> 2 1990 352 134 1276 7
#> 3 1992 92 352 134 1276
#> 4 1996 331 92 352 134
#> 5 1998 98 331 92 352
#> 6 1999 36 98 331 92Create partition for training and testing data using the createDataPartition() function from the caret package.
set.seed(123)
train_index <- createDataPartition(nigeria_cases$positive,
p = 0.8, list = FALSE)
train <- nigeria_cases[train_index, ]
test <- nigeria_cases[-train_index, ]16.3.1.2 Model Selection and Training (Parameter Calibration)
Define the machine learning model specific for investigating Malaria dynamics. In this case, we will use the time and number of lagged cases to predict the number of infected cases. We will use the train() function from the caret package to train the model. A suitable model would be? List the models that can be used for this task: - Random Forest (“rf”) - Gradient Boosting (“gbm”) - Support Vector Machines (“svm”) - Neural Networks (“nnet”) - etc.
In the method argument, specify the model to be used (e.g., “rf” for Random Forest). The trControl argument specifies the cross-validation method for hyperparameter tuning, and the tuneGrid argument defines the hyperparameter grid for tuning.
# Define the training control with 5-fold cross-validation
train_control <- trainControl(method = "cv", number = 5)
# Define a tuning grid for mtry (number of variables sampled at each split)
tuning_grid <- expand.grid(mtry = c(1, 2, 3))
# Train the Random Forest model
set.seed(123)
rf_model <- train(
positive ~ lag_1 + lag_2 + lag_3,
data = train,
method = "rf",
trControl = train_control,
tuneGrid = tuning_grid,
ntree = 500 # Increase the number of trees if desired
)The parameter calibration (hyperparameter tuning) is performed by the train function automatically using cross-validation to select the optimal hyperparameters for the model.
16.3.1.3 Model Evaluation
Testing the model on observed data will show how the model performs in estimating the number of infected cases.
# Predict on the test data
nigeria_cases$pred <- predict(rf_model, newdata = nigeria_cases)
nigeria_cases %>%
ggplot(aes(x = year, y = positive)) +
geom_line(color = "navy", linetype = "solid") +
geom_line(aes(y = pred), color = "darkred", linetype = "dashed") +
labs(title = "Observed vs Predicted Malaria Positive Cases in Nigeria",
x = "Year",
y = "Number of Positive Cases") +
theme_minimal()
To evaluate the model’s ability in predicting future trends, we predict the number of infected cases on the test data and calculate the Root Mean Squared Error (RMSE). The test data is a subset of the original data that was not used for training the model, and it provides an independent evaluation of the model’s performance.

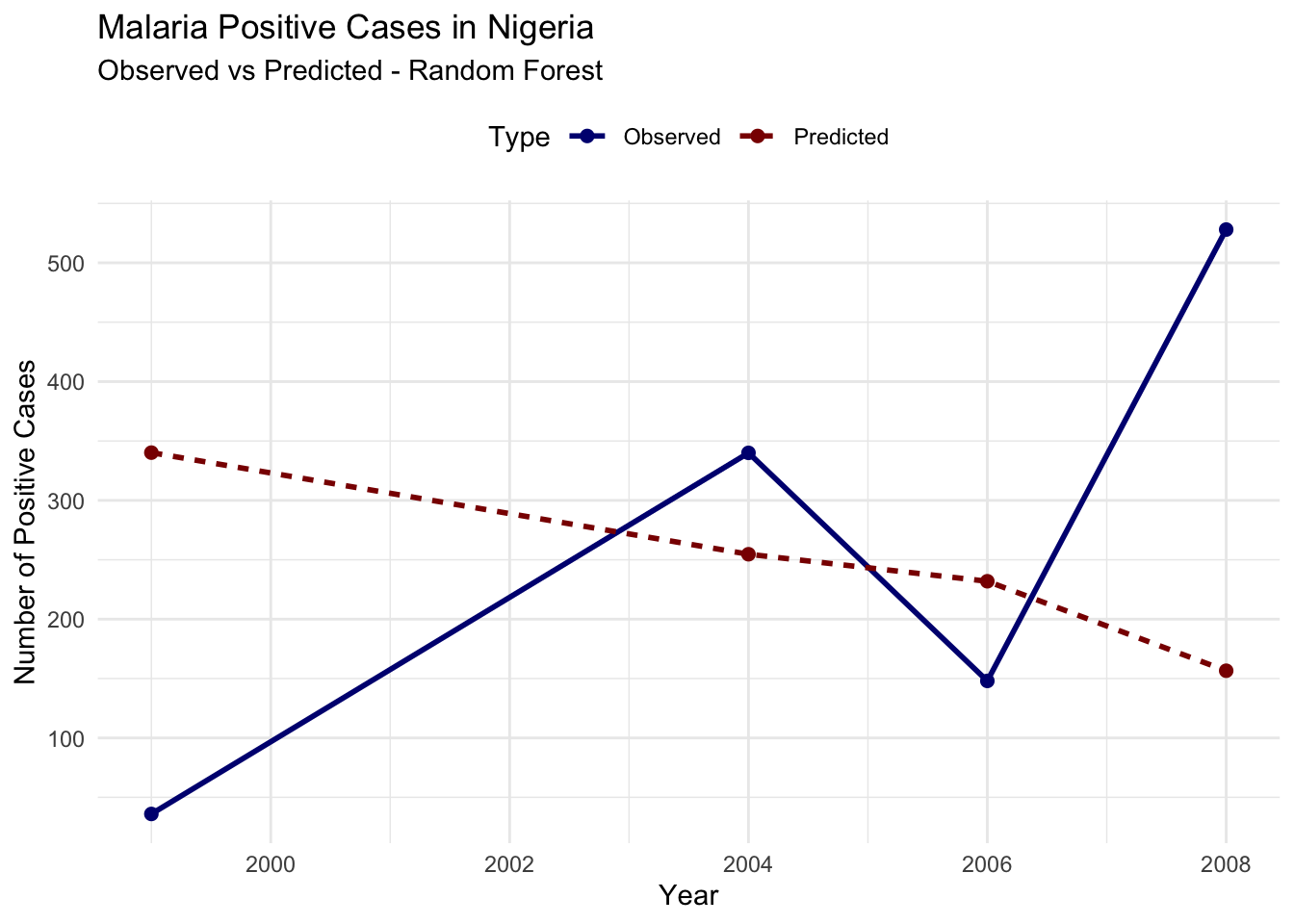

Visualize the predicted vs actual infected cases using a line plot to compare the model’s predictions with the actual data.
# Reshape data for plotting
plot_data <- test %>%
select(year, positive, pred) %>%
rename(Observed = positive, Predicted = pred) %>%
pivot_longer(cols = c("Observed", "Predicted"),
names_to = "Type", values_to = "Cases")
# Plot observed vs predicted cases
ggplot(plot_data, aes(x = year, y = Cases,
color = Type, linetype = Type)) +
geom_line(size = 1) +
geom_point(size = 2) +
scale_color_manual(values = c("navy", "darkred")) +
labs(title = "Observed vs Predicted Malaria Positive Cases in Nigeria",
x = "Year",
y = "Number of Positive Cases") +
theme_minimal() +
theme(legend.position = "top")
Evaluate the model’s performance using RMSE:
A Root Mean Squared Error (RMSE) of 247.3936 indicates the average difference between the predicted and actual values of infected cases. Lower RMSE values indicate better model performance.
The output shows that the model’s predictions are not closely aligned with the observed values, the predicted trend seems to be relatively flat or declining, while the observed cases show significant fluctuations. This mismatch suggests that the current model setup may not be effectively capturing the dynamics of malaria transmission in this dataset.
16.4 Model Refinement
To improve the model’s performance, we can refine the model by adjusting parameters such as ‘mtry’ in Random Forest. For example, increase the number of folds in cross-validation, adjust the tuning grid, or add additional features to improve the model’s performance.
# Increase the number of folds in cross-validation
train_control <- trainControl(method = "cv", number = 10)
# Scaling data in caret
rf_model2 <- train(
positive ~ year + lag_1 + lag_2 + lag_3,
data = train,
method = "rf",
trControl = train_control,
tuneGrid = expand.grid(mtry = 2:4),
preProcess = c("center", "scale")
)Predict future trends using the trained adjusted Random Forest model on the test data.
# Predict on the test data

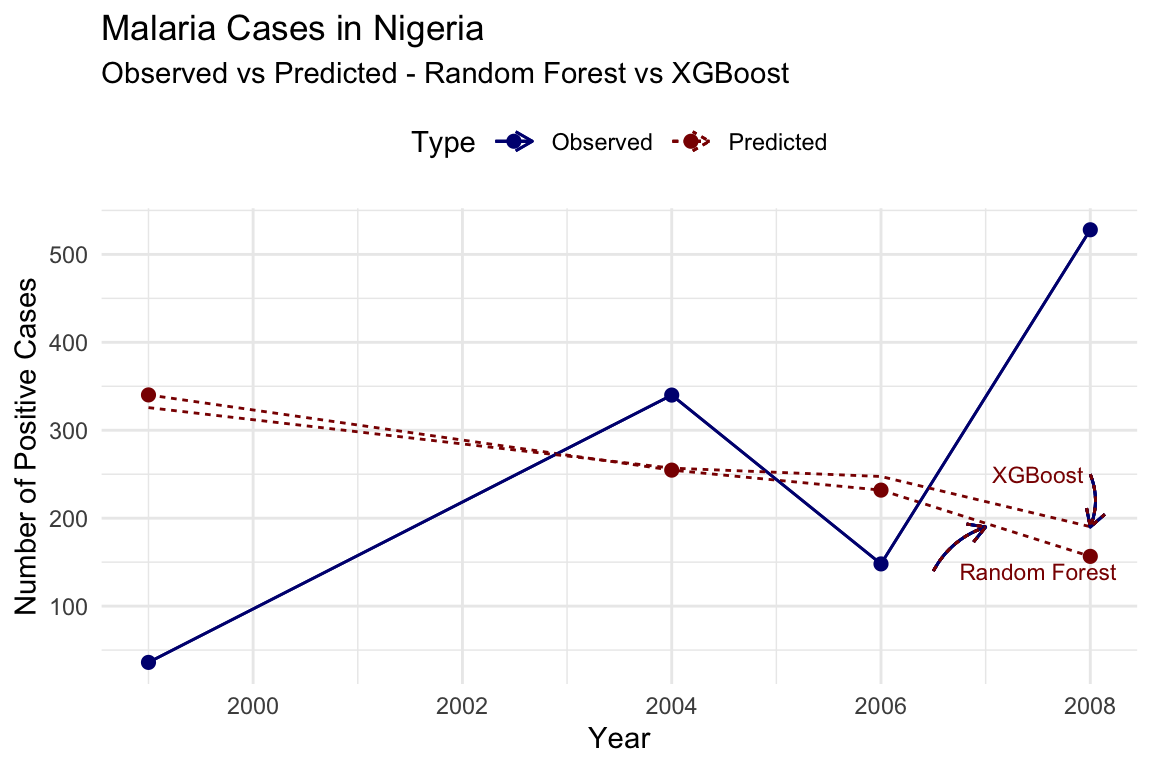

test$pred_rf2 <- predict(rf_model2, newdata = test)Visualize the predicted vs actual infected cases using a line plot to compare the adjusted Random Forest model’s predictions with the actual data.
# Reshape data for plotting
plot_data_xgb <- test %>%
select(year, positive, pred_rf2) %>%
rename(Observed = positive, Predicted = pred_rf2) %>%
pivot_longer(cols = c("Observed", "Predicted"),
names_to = "Type", values_to = "Cases")
# Plot observed vs predicted cases
ggplot(plot_data_xgb, aes(x = year, y = Cases,
color = Type, linetype = Type)) +
geom_line(size = 1) +
geom_point(size = 2) +
scale_color_manual(values = c("navy", "darkred")) +
labs(title = "Observed vs Predicted Malaria Positive Cases in Nigeria (XGBoost)",
x = "Year",
y = "Number of Positive Cases") +
theme_minimal() +
theme(legend.position = "top")
Evaluate the model’s performance improvement using RMSE:
In conclusion, the model’s performance can be further improved by adjusting hyperparameters, adding additional features, or using more advanced algorithms. The iterative process of model refinement and evaluation is essential for developing accurate predictions of malaria transmission dynamics.
16.5 Summary
In this chapter, we explored the dynamics of Malaria transmission and the importance of mapping outbreaks to guide public health interventions. We used the malariaAtlas package to download malaria data for Nigeria and visualised the distribution of malaria cases in the country. We also demonstrated how machine learning can be used to predict future trends in malaria transmission using historical data. The iterative process of model refinement and evaluation is crucial for developing accurate predictions and guiding effective public health interventions.
